How to Mount an NFS Share Using a Windows 10 Machine

Mounting an NFS (Network File System) share using a Unix-like operating system is pretty straight forward. But how do you mount an NFS share of a UNIX system from a Windows 10 machine? Keep reading to find out how.

NFS Only Works in Windows 10 Enterprise

Update 2012-04-20 – These instructions should now work on Windows 10 Pro (Version 10.0.14393 and above) as mentioned by EyeDocGeek in the comments.

This tutorial only applies to the enterprise version of Windows 10 because it is the only version which includes the Services for NFS feature. If you don’t have the enterprise version of Windows, then you might be better off exposing your share using Samba which should work on all versions of Windows.

With that said let’s install the Services for NFS feature and mount an NFS share.

Install the NFS Client (Services for NFS)

The first thing we need to do is install the NFS Client which can be done by following the steps below:

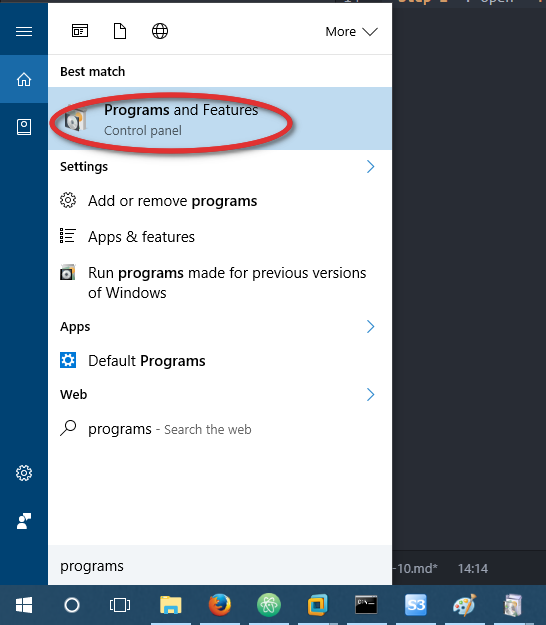

Step 1: Open Programs and Features.

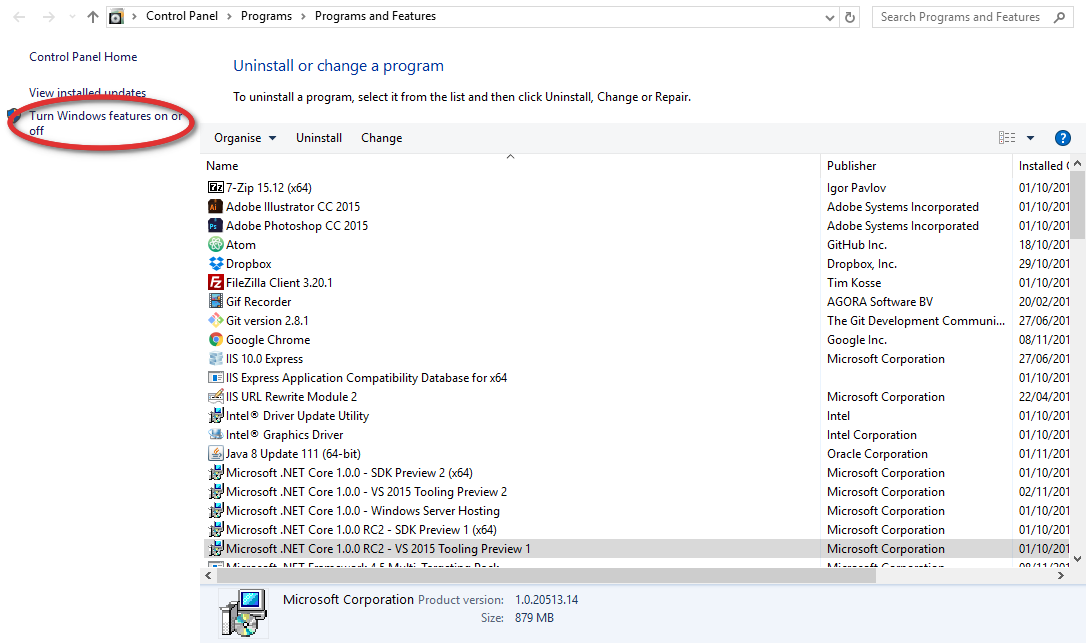

Step 2: Click Turn Windows features on or off.

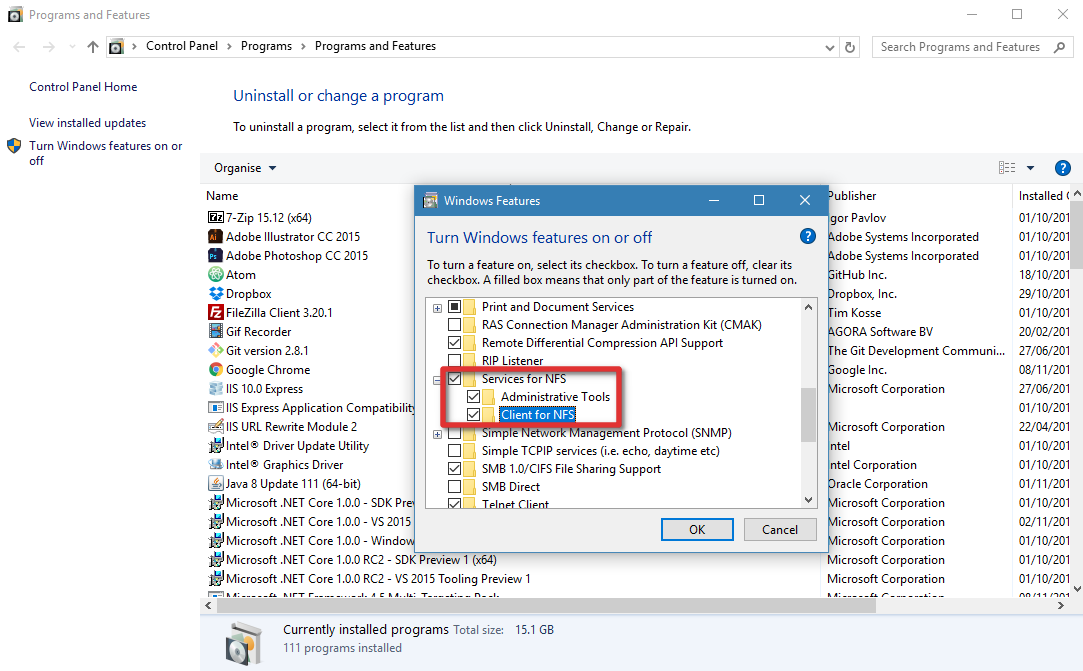

Step 3: Scroll down and check the option Services for NFS, then click OK.

Step 4: Once installed, click Close and exit back to the desktop.

Enable Write Permissions for the Anonymous User

With the default options you will only have read permissions when mounting a UNIX share using the anonymous user. We can give the anonymous user write permissions by changing the UID and GID that it uses to mount the share.

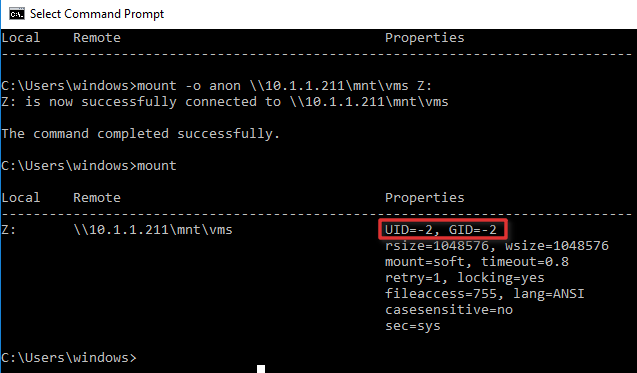

The image below shows the a share mounted using the default settings.

To change the UID and GID we need to make a simple change to the Windows registry by performing the following steps:

1. Open regedit by typing it in the search box end pressing Enter.

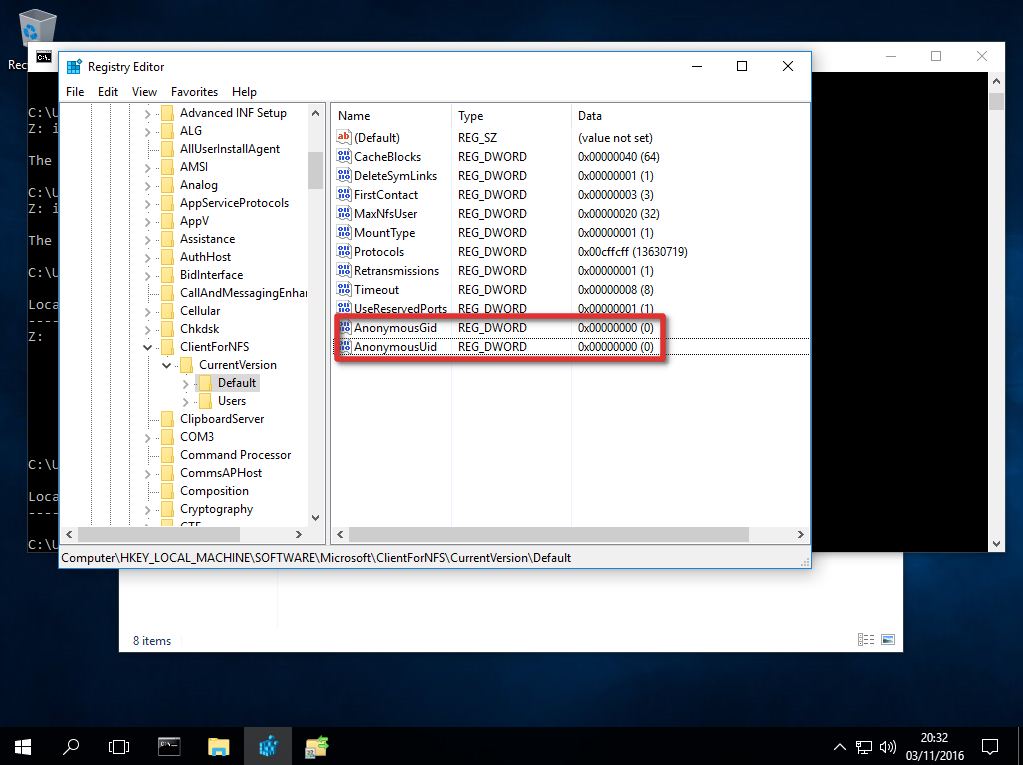

2. Browse to HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\ClientForNFS\CurrentVersion\Default.
3. Create a new New DWORD (32-bit) Value inside the Default folder named AnonymousUid and assign the UID found on the UNIX directory as shared by the NFS system.
4. Create a new New DWORD (32-bit) Value inside the Default folder named AnonymousGid and assign the GID found on the UNIX directory as shared by the NFS system.
5. Restart the NFS client or reboot the machine to apply the changes.

The output of the mount command should now look like this:

Local    Remote                                 Properties
-------------------------------------------------------------------------------
Z:       \\10.1.1.211\mnt\vms                   UID=0, GID=0
                                                rsize=1048576, wsize=1048576
                                                mount=soft, timeout=1.6
                                                retry=1, locking=yes
                                                fileaccess=755, lang=ANSI
                                                casesensitive=no
                                                sec=sys

Notice the 0 value applied to the UID and GID. This means the share is mounted using the root user.

How to Mount an NFS Share

Assuming your NAS device is on the same network as your Windows machine and the IP address of the device is 10.1.1.211, the following command will mount a share on the NFS system at /mnt/vms.

C:\Users\windows>mount -o anon \\10.1.1.211\mnt\vms Z:
Z: is now successfully connected to \\10.1.1.211\mnt\vms

The command completed successfully.

The share is now mounted and we can access the data by navigating to the Z: drive.
